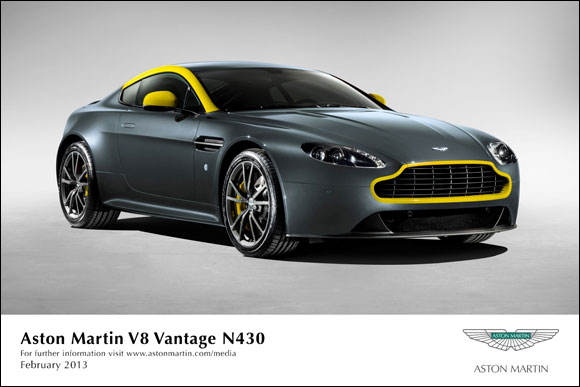

Aston Martin V8 Vantage N430 specification

Body

Two-seat, two-door Coupe or soft-cover convertible top body style
Extruded bonded aluminium VH body structure
Aluminium, magnesium alloy, composite and steel body
Extruded aluminium door side-impact beams
Halogen projector headlamps (main beam)
High Intensity Discharge headlamps (dipped beam)
LED rear lamps

Engine

All-alloy, quad overhead camshaft, 32-valve 4735 cc V8
Front mid-mounted engine, rear-wheel drive
Fully catalysed stainless steel Sports exhaust system with active bypass valves
Compression ratio 11.3:1
Max power: 321 kW (436 PS/430 bhp) at 7300 rpm
Max torque: 490 Nm (361 lb ft) at 5000 rpm
Acceleration: 0-100 km/h (0-62 mph) in 4.8 seconds
Max speed: 305 km/h (190 mph)
Fuel economy (Sportshift ll)6: Urban – 14.7mpg, Extra Urban – 30.4mpg, Combined – 21.9mpg
CO2 emissions (Sportshift ll)6: 299g/km
Fuel economy (manual): Urban – 14.4mpg, Extra Urban – 27.2mpg, Combined – 20.5mpg
CO2 emissions (manual): 321g/km

Transmission

Rear mid-mounted ‘Sportshift ll’6 seven-speed automated manual transmission with black magnesium paddleshifts or six-speed manual transmission with carbon-fibre gearshift surround
Alloy torque tube with carbon-fibre propeller shaft
Limited-slip differential
Final-drive ratio 4.182:1 (Sportshift ll) 6 or 3.91:1 (manual)

Wheels and Tyres

Front: 8.5J x 19“ Bridgestone Potenza RE050 245/40 ZR19
Rear: 10J x 19” Bridgestone Potenza RE050 285/35 ZR19

Steering

Rack and pinion, power-assisted steering, 2.62 turns lock-to-lock
Column tilt and reach adjustment
Steering rack with 15:1 ratio

Suspension

Sports suspension
Front: Independent double wishbone incorporating anti-dive geometry, coil springs, anti-roll bar and monotube dampers
Rear: Independent double wishbones with anti-squat and anti-lift geometry, coil springs, anti-roll bar and monotube dampers

Brakes

Front: Ventilated and grooved two-piece floating discs, 380mm diameter with six-piston monobloc calipers
Rear: Ventilated and grooved steel discs, 330mm diameter with four-piston monobloc calipers
Dynamic Stability Control (DSC) with track mode
Anti-lock Braking System (ABS)
Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Positive Torque Control (PTC)
Traction control (TC)

Dimensions

Length:
 4385mm (inc. front number plate plinth) Wheelbase: 2600mm
Width:
 2022mm (inc. mirrors) Fuel tank capacity: 80 litres (17.6 UK gal/21.1 US gal)
Height:
 1260mm (Coupe)
1270mm (Roadster) Weight: 1610 kg (Coupe)
1690kg (Roadster)

Standard specification

Standard exterior specification

A selection of 5 exterior liveries:
Alloro Green
Jet Black
Skyfall Silver
Mariana Blue
Speedway White
“S” side sills
10-spoke forged alloy graphite painted wheels
Choice of brake caliper finish: Yellow, Black, Silver or Red
Black vaned front grille
Black bonnet and side strake meshes
Black headlamp bezels1
Black side window trim surround
Black textured tailpipe finisher
Clear rear lamps with black surround
“N430” tailgate badge
Special edition engine bay inspection plaque

Standard interior specification

Black or Grey interior theme with a choice of accent colour: Yellow, Black, Silver or Red
Obsidian Black or Argento Grey full-grain leather interior
Door and seat inserts in Plissé Alcantara® (Coupe only) or indented leather (all models)
Carbon-Fibre facia trim
Piano Black interior trim
Black anodised centre console rotary controls
Pure Black Alcantara® steering wheel with matching stitch (Coupe only) or leather steering wheel with contrasting on-centre stitch (all models)
Electrically adjustable Carbon-Fibre and Kevlar® lightweight seats2 or Sports seats with side airbags
Dual-stage driver/passenger front airbags
Powerfold exterior heated mirrors
Heated rear screen
Automatic temperature control
Organic Electroluminescent (OEL) displays
Trip computer

Rear parking sensors
Tyre pressure monitoring
Alarm and immobiliser
Remote control central door locking and boot release
Glass ECU
Aston Martin Tracking by Cobra3,4 (UK only)
LED map reading lights
Black anodised tread plates with machined carbon special edition sill plaque
Embroidered ‘N430’ seat logo

In-car entertainment

160W Aston Martin audio system with six-CD autochanger
Integrated Apple iPod® connector5
USB connector with Waveform Audio Format (WAF), Windows Media Player (WMA) and MPEG (MP3) audio file compatibility

Exterior options

ClubSport Graphics Pack: bespoke painted graphics comprising lipstick, mirror caps, A-pillar/cantrail (Coupe only) and rear diffuser blade offered in the following colours for each exterior livery (standard in UK only)
Yellow with Alloro Green paintwork
Grey with Jet Black paintwork
White with Skyfall Silver paintwork
Red with Mariana Blue paintwork
Red with Speedway White paintwork
Comfort suspension (Coupe only)
Carbon-Fibre front splitter and rear diffuser
Carbon-Fibre side strakes
Carbon-Fibre mirror caps
Carbon-Fibre rear lamp infills
Rear parking assist camera
Front parking sensors

Interior options

‘Sportshift II’6 seven-speed automated manual transmission with 4.182:1 final-drive ratio and black magnesium paddleshifts with accent colour

Heated seats7
Memory seats and exterior mirrors (three positions)8
Passenger seat with ISO FIX (fixed height)1
700 W Aston Martin Premium Audio System with Dolby® Pro Logic II®
1000 W Bang & Olufsen BeoSound audio system with ICEpower® technology featuring black anodised speaker grilles and ALT lenses with accent feature
Satellite navigation system1
Cruise control1
Bluetooth® telephone preparation1
Auto-dimming interior rear-view mirror1
Auto-dimming interior rear-view mirror with garage door opener1
Alarm upgrade (volumetric and tilt sensor)
Carbon-Fibre door grabs
Glass switches
Second glass ECU
Aston Martin Tracking by Cobra1,3,4
First aid kit1
Ashtray and cigar lighter
Boot-mounted umbrella
Wind deflector (Roadster only)
Deletion of ‘N430’ seat embroidery
Aston Martin wings seat embroidery7
Black leather ECU pouch

Notes
1 Not available in all markets.
2 Does not include side airbags or passenger airbag cut-off switch.
3 Complies with UK Thatcham Category 5 requirements. Excludes subscription. Standard in UK.
4 Cobra is a registered trademark of Cobra Automotive Technologies SpA.
5 iPod® is a trademark of Apple Inc., registered in the US and other countries.
6 ‘Sportshift’ trademark is used under licence from Prodrive (Holdings) Ltd.
7 Not available with lightweight seats.
8 Standard with lightweight seats.
